Hi everyone,

I am currently trying to simulate an encoder which send 10 pulses per mm done by an axis.

I struggle a bit to know how to configure the card to make it work. There isn’t a lot of details in the help.

I’ve currently come up to this configuration.

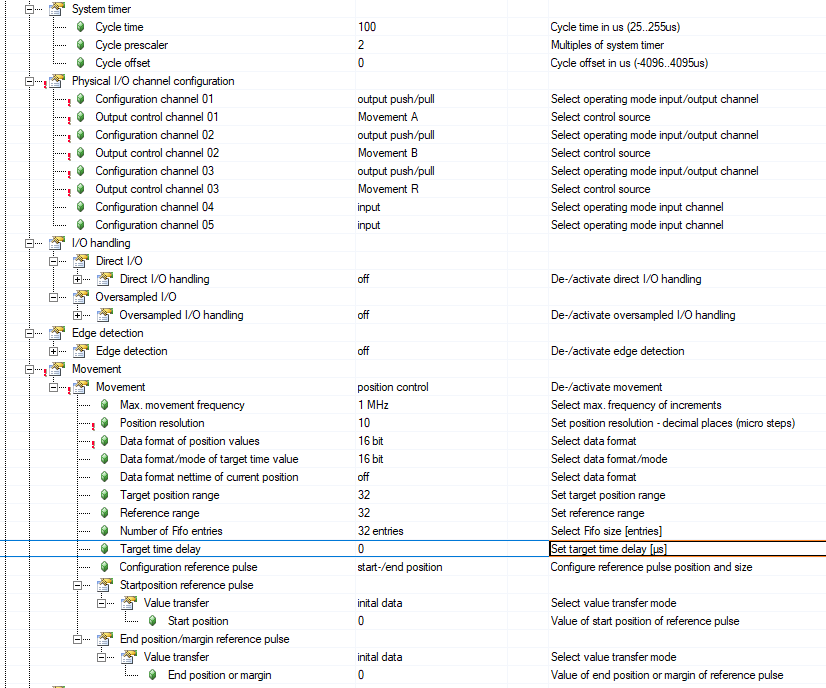

 ![image](https://europe1.discourse-cdn.com/brcommunity/original/2X/1/14f820a269b81c513169e807a3b39763367febac.png)

But i don’t know how to configure all the movement parameter.

Has anyone ever simulate an encoder with this car and can help me?

Thanks in advance.

---

<div class="post-metadata">

**Author:** ![michael.bertsch](https://dub1.discourse-cdn.com/brcommunity/user_avatar/community.br-automation.com/michael.bertsch/32/239_2.png) [@michael.bertsch](https://community.br-automation.com/u/michael.bertsch)\
**Post date:** [September 12, 2025, 8:04am UTC](https://community.br-automation.com/t/x20ds1119-encoder-simulation/8280/2 "2025-09-12T08:04:02Z")

</div>

Hello,

I never used this functionality. I only can hint to the Documentation in Automation Studio Help.
[AS-Help DS1119 Movementgenerator](https://help.br-automation.com/#/de/6/hardware/x20ds1119/x20ds1119_sw/bewegungsfunktionen.html)

I hope this Information is usefull for you.

Greetings
Michael

---

<div class="post-metadata">

**Author:** ![corne.geerts](https://avatars.discourse-cdn.com/v4/letter/c/FF8800/32.png) [@corne.geerts](https://community.br-automation.com/u/corne.geerts)\
**Post date:** [September 12, 2025, 11:48am UTC](https://community.br-automation.com/t/x20ds1119-encoder-simulation/8280/3 "2025-09-12T11:48:44Z")

</div>

There is an internal test project (X20DS1119\_GEC) and exercise document (Exercises X20DS1119 Workshop\_Solutions) from the 2017 GEC concerning this card.

Perhaps you could ask your local B&R support to provide this project and exercise document.
