Creating Visualisation Templates from the Examples in Automation Help

Ask Questions HMI & Visualization
,
1

image1148×903 147 KB

image1163×905 123 KB

image1160×915 142 KB

Hello,

I’m running Automation Studio 4.

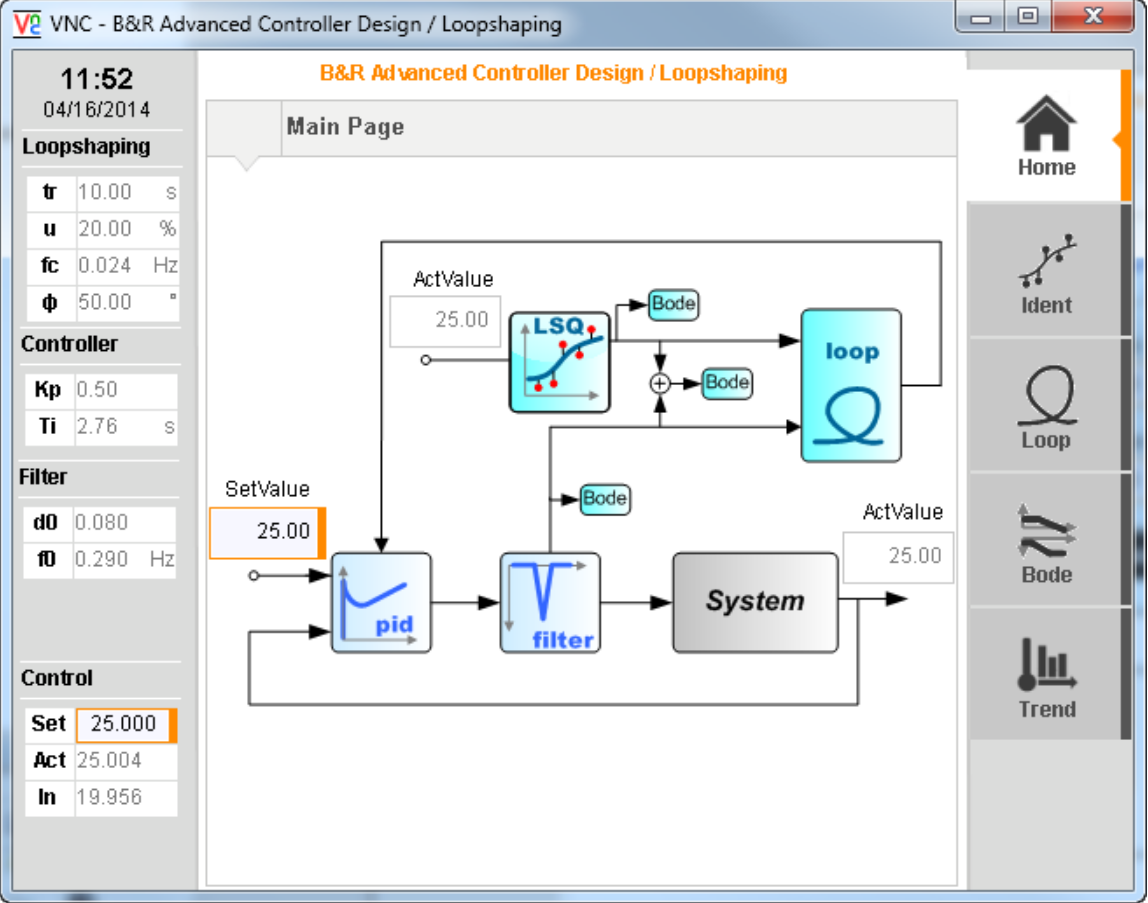

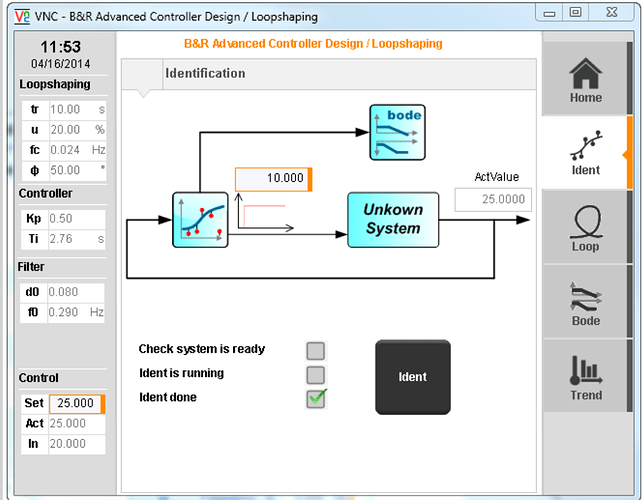

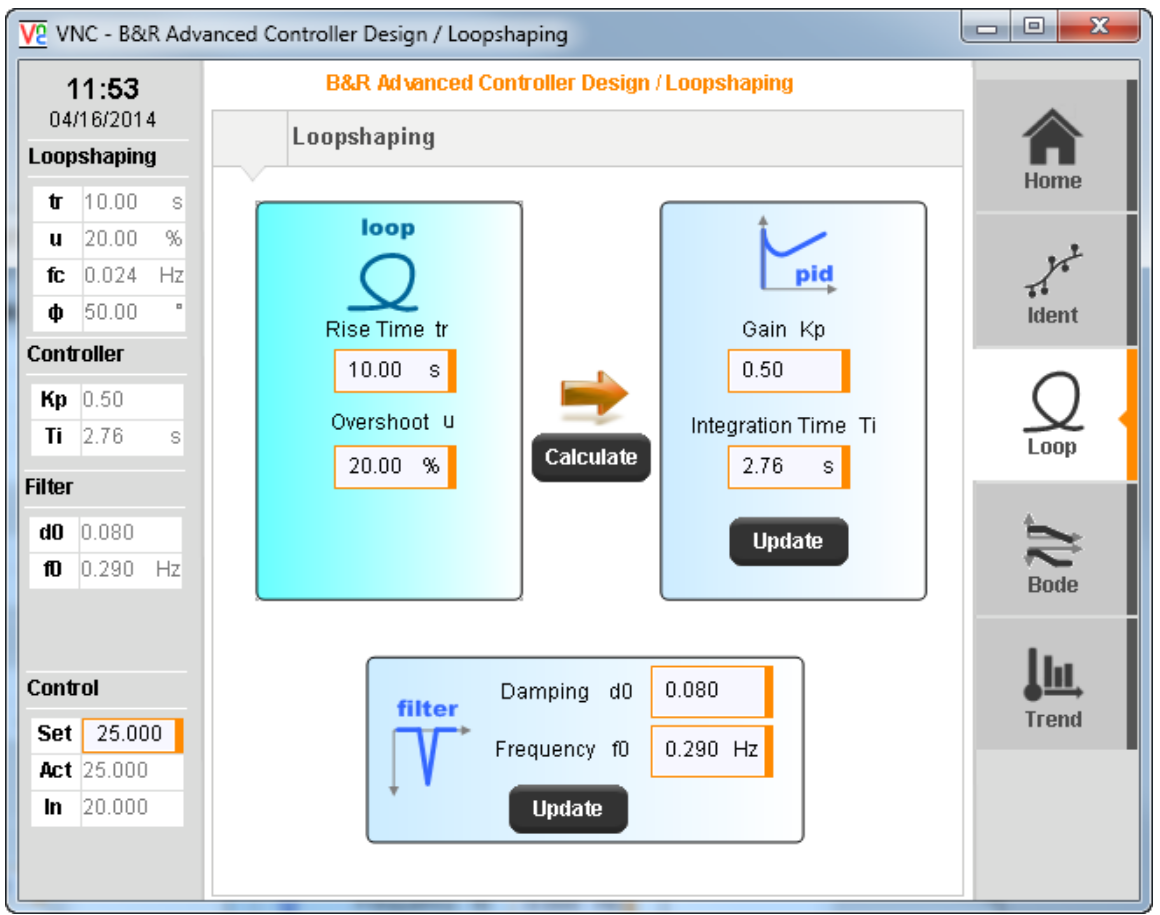

The images I’ve attached are in Automation Help/Mechatronics/Extra/AdvancedControllerDesign/Controller design with the loop-shaping method/Visu. Those are the perfect templates to clearly demonstrate these function blocks to people in a clear manner.

I’m wondering if those Visus are available to everyone. It would save a bit of time rather than me doing up a visu manually :sweat_smile:

Thanks very much for any help.

2

Yes, that is a good question. I have never seen this, but I would search in mechatronic samples. If no one will help you here, please get in contact with your local B&R office support.
